zewnętrzny opancerzony kabel światłowodowy

Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length

Wszystkie kategorie

zewnętrzny opancerzony kabel światłowodowy

Fotoelektryczny kabel kompozytowy

Kable światłowodowe zewnętrzne

Kable światłowodowe wewnętrzne

Skrzynka zaciskowa światłowodu

moduł światłowodowy

Skontaktuj się z nami

sales@hxfiber.com

Skontaktuj się teraz

Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length

Nazwa marki:	HXCOWO
Numer modelu:	HX-SW6
MOQ:	1000

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

Orzecznictwo:

Rdzenie światłowodowe:

2-288 rdzeni

Typ światłowodowy:

G652D/G657A1/G657A2

Średnica:

10,6-15 mm

Waga:

124-207 kg/km

Siła rozciągająca:

1000/3000 N

Siła squasha:

1000/3000 N/10 mm

Promień zginania:

10D/20D mm

Luźny materiał rurkowy:

Poli o wysokim module sprężystości

Materiał pochłaniowy:

Kompozyt aluminiowo-plastikowy

Rdzeń wzmacniający:

Pojedynczy metalowy drut stalowy

Wodoodporna mieszanka:

Specjalna pasta olejowa

Długość dostawy:

Niestandardowa długość

Odporność na temperaturę:

Wysoka i niska temperatura

Metody układania:

Rurociąg, napowietrzny, bezpośrednio zakopany

Produkcja miesięczna:

1500 km

Podkreślić:

2-288 Cores GYXTW Fiber Optic Cable

G652D/G657A1/G657A2 Fiber Type Outdoor Armored Fiber Optic Cable

Custom Length Armoured Fiber Optic Cable

Opis produktu

HXCOWO Free Sample Hot Sale 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor GYXTW G657A Armoured Fiber Optic Cable

TECHNICAL PARAMETERS

Fiber Cores Number	Diameter (mm)	Weight (kg/km)
2-12	10.6	124
14-24	12	147
26-36	12	150
38-48	15	207

Allowable Tensile Force Long Term/Short Term (N)	Allow Squash Force Long Term/Short Term (N/10mm)	Bending Radius Static/Dynamic (mm)
1000/3000	1000/3000	10D/20D

PRODUCT FEATURES

Excellent mechanical properties and temperature characteristics
Loose tube material with good hydrolysis resistance and high strength
Tube filled with special oil paste for critical fiber protection
Good compression resistance and softness
Double sided coated steel strip (PSP) improves moisture resistance
Two parallel steel wires ensure tensile strength
Small diameter, light weight, easy to lay
Long delivery length

OUTDOOR BUNDLED TUBE FIBER CABLE GYXTW

Grade A fiber core/High-quality material selection/Quality assurance

PHOSPHATED STEEL WIRE

Using corrosion-resistant phosphated steel wire, parallel metal reinforcement components with excellent tensile properties. Center-type design of the bundle tube effectively protects the optical fiber and minimizes pressure impact. Suitable for various site operations.

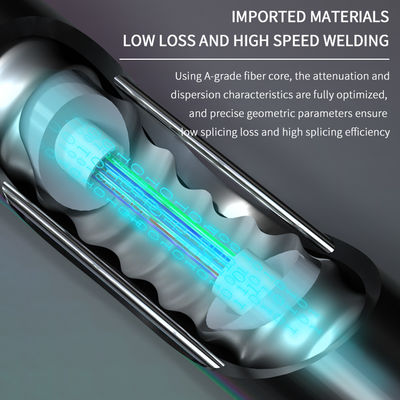

IMPORTED MATERIALS - LOW LOSS AND HIGH SPEED WELDING

Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.

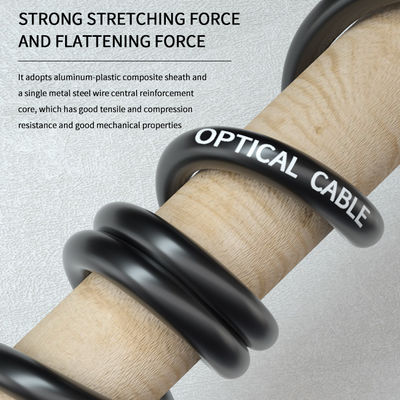

STRONG STRETCHING FORCE AND FLATTENING FORCE

Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with good mechanical properties.

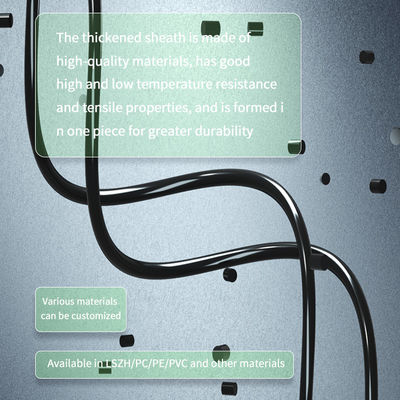

The thickened sheath is made of high-quality materials with excellent high/low temperature resistance and tensile properties, formed in one piece for greater durability. Various materials available including LSZH/PC/PE/PVC.

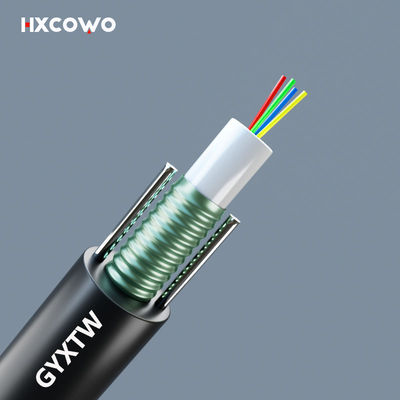

GYXTW CABLE STRUCTURE

Single-mode or multi-mode optical fiber inserted into high-modulus poly loose tube casing filled with waterproof compound. Loose tubes twisted around central strengthening core into compact circular cable with water-blocking fillers. Features small diameter and light weight, suitable for pipeline, overhead and direct buried laying. Excellent mechanical properties and temperature characteristics, compatible with other telecommunications-grade optical fibers.

PRODUCT DESIGN

Accept customization - Put Your Good Idea into Reality Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 9

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. Founded in 2010 with brand HXCOWO, providing optical fiber cabling solutions for data centers, enterprise networks, and operators. With over 10 years' development, $5 million registered capital, 6,000 sqm workplace, 7 production assemblies, and 70 skilled workers. Monthly output reaches 1500km fiber optic cables. ISO9001:2015 certified with products exported worldwide including Europe, America, Asia, South America, and Africa.

FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing etc).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
